Design of the Skids and Packages

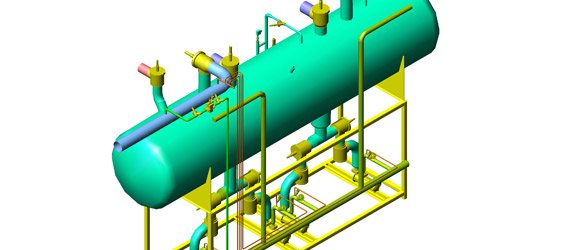

Skids and packages are engineered completely inclusive of isometric drawings prior to start of assembly. Particular attention is paid to the following features:

  • Main and sub component layout
  • Piping and electrical layout, supports and distribution
  • Structural steel frame calculations
  • Seismic, dynamic and pulsation studies
  • Accessibility and serviceability
  • Certification and area classification requirements

Typical engineered packages consist of the following:

  • Refrigeration compressor skids
  • Gas compressor skids
  • Pressure vessels skids
  • Evaporator or condenser skids
  • Pump or filtration packages

All the above skids can be fitted with purpose built auxiliaries such as special ventilation requirements, acoustic or thermal insulation, gas detection and alarm, fire suppression systems, explosion proof enclosures and many more. Our team of engineers is experienced and will meet all requirements of your project specifications.
